Production area separation fence – efficient and safe solution

A production area separation fence placed around machines or operating areas provides additional protection and a clear delimitation of the perimeter.

In today’s industrial environments, staff safety and clear organization of workspaces are essential to prevent accidents. Also for optimizing the production flow.

Access control

It allows the limitation of entry into critical areas only for authorized personnel. By installing lockable gates, access management is ensured according to internal procedures.

Project by H Metal

For a factory that needed the separation of the production area, H Metal supplied and installed the following components:

– bordered fence panels: height 1500 mm, length 2000 mm;

– sole poles: 1500 mm, made of 50 x 50 x 2 mm square pipe;

– U-type clamps for fixing the panels on the poles;

– M10 x 100 mm conexpanders for anchoring on the concrete surface;

– masking elements for the lower part of the sole of the poles;

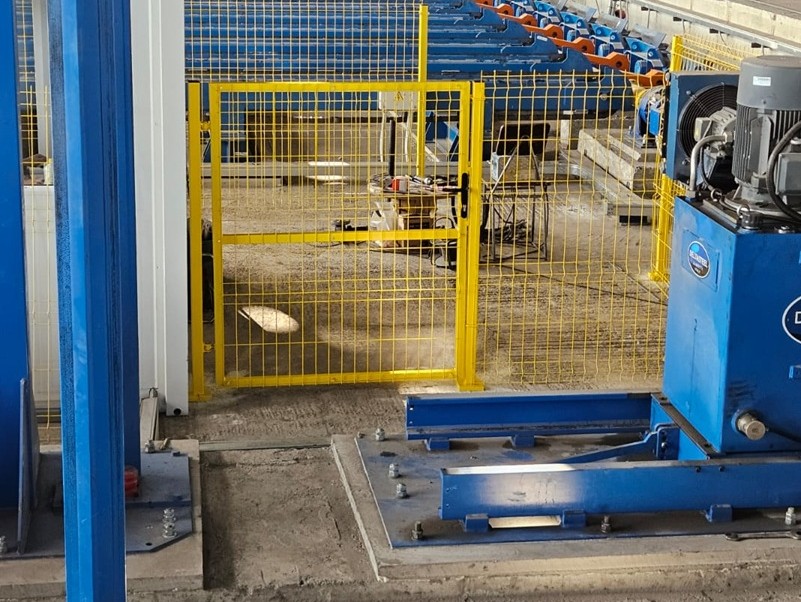

– pedestrian ports: height 1450 mm, width 1200 mm.

All these elements have been galvanized and powder-coated in RAL 1021 yellow. This ensures both a visible and professional appearance, as well as superior mechanical resistance against scratches and bumps.

Advantages of fence installation for separation of production area:

– increases work safety by restricting access to machinery in operation;

– maintains visibility over the area, allowing constant monitoring;

– flexible assembly, adaptable to the available space and specific requirements;

– long duration of use, the materials being resistant to wear;

– professional aspect, in accordance with European labor protection standards.

Utility and purpose

The fencing system has been designed to:

– clearly delimit the areas where automated or semi-automated processes are carried out;

– prevent accidental entry into high-risk spaces;

– provide easy access control through gates equipped with secure locking mechanisms;

Metal posts with sole – efficient fixing on concrete surfaces

A central element of this solution is represented by the metal posts with sole, specially designed for direct mounting on industrial concrete platforms. Each pole is made of steel and has a perforated sole for firm grip with metal conexpands.

Benefits of this type of pole:

– quick and clean installation, without welding, only with mechanical fixing

– adaptability, being able to be placed on any flat surface, without additional foundations

– ease of relocation, due to the possibility of quick dismantling.

In many industries, this type of fencing is an integral part of workplace safety management.

For similar projects, H Metal can offer customized solutions adapted to each industrial space.
