HEB beam


Product description:

H METAL is connected to your needs and quickly delivers, anywhere in the country, HEB profile in both standard and atypical sizes.

It is an H profile with normal wings.

The special shape makes HEB europrofiles have increased resistance to weight and mechanical stress. Characterized by robustness, durability and excellent resistance. It allows reducing the execution time of works.

It has high load resistance - the robust section of the profile allows the efficient absorption of compression, tension and bending stresses.

Thus it is ideal for load-bearing structures.

The symmetrical geometry and wide edge give it stability and uniform weight distribution.

Its standardized shape allows welding, drilling and simple assembly in complex projects.

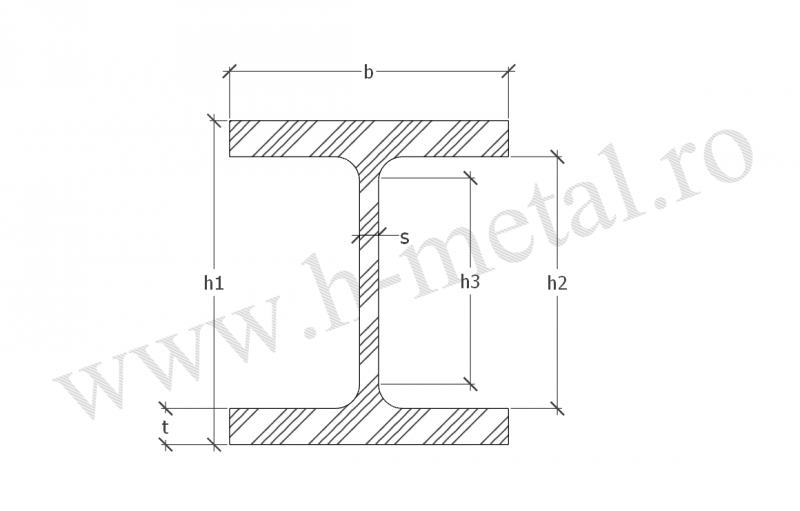

Standard dimensions of manufacturing / delivery


Name

Weight

Size (mm)

Section

Section module

kg / ml

cm²

cm³

Theoretical

Commercial

h1

b

s

t

h2

h3

F

Wx

Wy

HEB 100

20,4

20,9

100

100

6,0

10,0

80

56

26,04

89,9

33,5

HEB 120

26,7

27,4

120

120

6,5

11,0

98

74

34,01

144,1

52,9

HEB 140

33,7

34,5

140

140

7,0

12,0

116

92

42,96

215,6

78,5

HEB 160

42,6

43,7

160

160

8,0

13,0

134

104

54,25

311,5

111,2

HEB 180

51,2

52,5

180

180

8,5

14,0

152

122

65,25

425,7

151,4

HEB 200

61,3

63,0

200

200

9,0

15,0

170

134

78,08

569,6

200,3

HEB 220

71,5

73,0

220

220

9,5

16,0

188

152

91,04

735,5

258,5

HEB 240

83,2

85,0

240

240

10,0

17,0

206

164

106,00

938,3

326,9

HEB 260

93,0

95,0

260

260

10,0

17,5

225

177

118,40

1148,0

395,0

HEB 280

103,0

106,0

280

280

10,5

18,0

244

196

131,40

1376,0

471,0

HEB 300

117,0

120,0

300

300

11,0

19,0

262

208

149,10

1678,0

570,9

HEB 320

127,0

130,0

320

300

11,5

20,5

279

225

161,30

1926,0

615,9

HEB 340

134,0

137,0

340

300

12,0

21,5

297

243

170,90

2156,0

646,0

HEB 360

142,0

146,0

360

300

12,5

22,5

315

261

180,60

2400,0

676,1

HEB 400

155,0

159,0

400

300

13,5

24,0

352

298

197,80

2884,0

721,3

HEB 450

171,0

175,0

450

300

14,0

26,0

398

344

218,00

3551,0

781,4

HEB 500

187,0

192,0

500

300

14,5

28,0

444

390

238,60

4287,0

841,6

HEB 550

199,0

204,0

550

300

15,0

29,0

492

438

254,10

4971,0

871,8

HEB 600

212,0

217,0

600

300

15,5

30,0

540

486

270,00

5701,0

902,0

HEB 650

225,0

231,0

650

300

16,0

31,0

588

534

286,30

6480,0

932,3

HEB 700

241,0

247,0

700

300

17,0

32,0

636

582

306,40

7340,0

962,7

HEB 800

262,0

269,0

800

300

17,5

33,0

634

674

334,20

8977,0

993,6

HEB 900

291,0

298,0

900

300

18,5

35,0

830

770

371,30

10980,0

1054,0

HEB 1000

314,0

322,0

1000

300

19,0

36,0

928

868

400,00

12890,0

1090,0


HEB beam

Uses

HEB small sizes 100 - 160 mm:

- light structures or superstructures, secondary beams, small openings;

- frames for warehouses, metal containers, industrial door frames;

- temporary buildings or small halls;

- structures for solar panel systems and energy equipment.

HEB medium sizes 180 - 300 mm:

- industrial buildings, production halls, logistics centers;

- main columns or beams, rigid frames, self-supporting structures;

- load-bearing columns of reduced levels, openings up to 8–12m;

- modular structures, metal floors.

HEB large sizes 320 - 1000 mm:

- infrastructure constructions, bridges, multi-storey car parks, silos;

- massive columns of 3+ storey buildings, frames of multi-storey buildings, structural columns;

- pedestrian bridges, heavy industrial structures;

- oil and naval structures, critical infrastructure;

- heavy equipment supports and anti-seismic structures.

Technical characteristics of HEB profile:

Manufacturing standard: according to EN 10365

Manufacturing tolerances: according to EN 10034

Steel used: according to DIN 17100 / EN 10025

Surface appearance: according to EN 10163-3, C

Quality certificate: according to EN 10204 - type 2.2 or 3.1B

Similar products:

HEM

INP profile

For a specific offer please send us: product name, size, steel quality, quantity and destination. Thank you!
