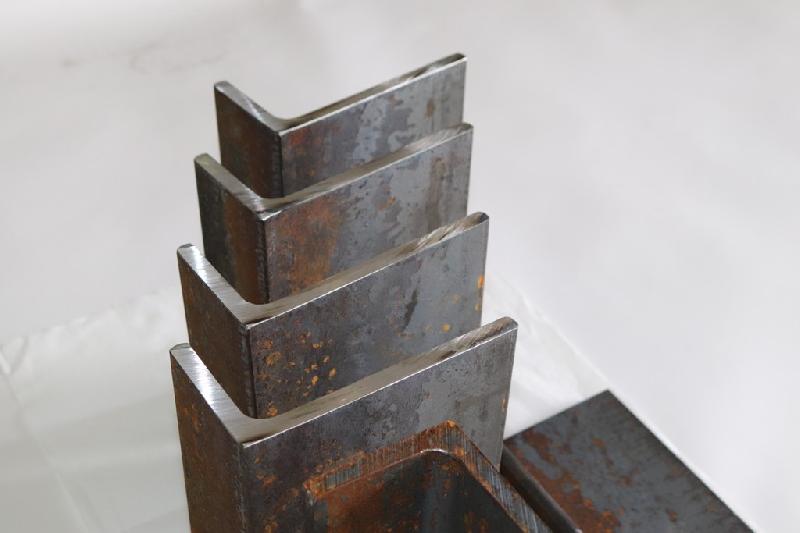

Unequal sides angle

Product description:

Do you need a tight tolerance metallurgical product that can easily support heavy loads?

The steel angle with unequal sides is used as a support structure in the construction industry and in general in the industrial field for the execution of various parts and elements for machinery.

We quickly deliver steel the unequal sides angles in the way according to the European standards.

Safe transportation in Romania + EU

Working with H Metal brings the buyer various pre-delivery work, meaning we can deliver you the unequal angle for construction, cutted, pierced, welded, galvanized and/or painted

Request a quote

Standard dimensions of manufacturing / delivery

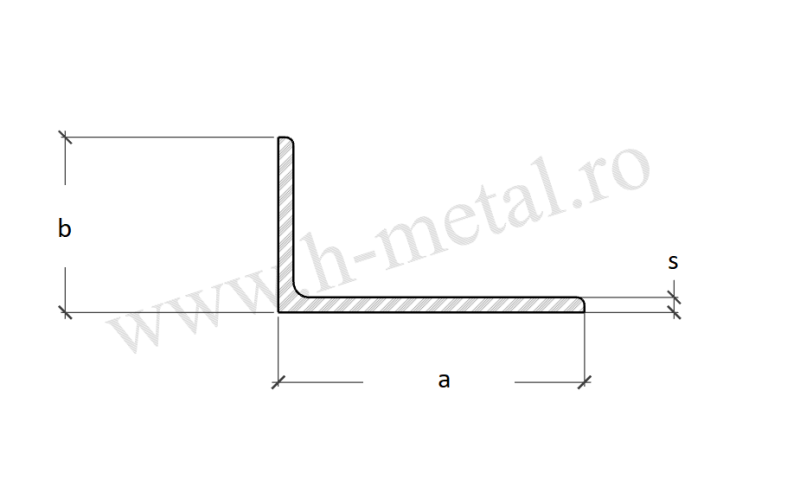

Width sides	Thickness	Weight	Size		Section aria	Axis
axb	s	g	Radius r1	Radius r2	A	Cx	Cy	lx	ly	lxy	lu	lv	ix	iy	iu	iv
mm	mm	kg / ml	mm	mm	cm²	cm	cm	cm⁴	cm⁴	cm⁴	cm⁴	cm⁴	cm	cm	cm	cm
30 x 20	3	1.12	4.0	2.0	1.43	0.99	0.50	1.25	0.437	-0.424	1.43	0.256	0.935	0.553	1	0.424
30 x 20	4	1.46	4.0	2.0	1.86	1.03	0.54	1.59	0.553	-0.53	1.81	0.33	0.925	0.546	0.988	0.421
40 x 20	4	1.77	4.0	2.0	2.26	1.47	0.48	3.59	0.596	-0.806	3.8	0.393	1.26	0.514	1.3	0.417
40 x 25	4	1.93	4.0	2.0	2.46	1.36	0.62	3.89	1.16	-1.21	4.35	0.701	1.26	0.688	1.33	0.534
45 x 30	4	2.25	4.5	2.3	2.86	1.48	0.74	5.75	2.04	-1.98	6.61	1.19	1.42	0.845	1.52	0.644
50 x 30	5	2.96	5.0	2.5	3.78	1.73	0.74	9.36	2.51	-2.75	10.3	1.54	1.57	0.816	1.65	0.639
60 x 30	5	3.37	6.0	3.0	4.29	2.15	0.68	15.6	2.6	-3.54	16.5	1.7	1.9	0.779	1.96	0.629
60 x 40	5	3.76	6.0	3.0	4.79	1.96	0.97	17.2	6.11	-5.91	19.7	3.54	1.89	1.13	2.03	0.86
60 x 40	6	4.46	6.0	3.0	5.68	2.00	1.01	20.1	7.12	-6.88	23.1	4.16	1.88	1.12	2.02	0.855
65 x 50	5	4.35	6.0	3.0	5.54	1.99	1.25	23.2	11.9	-9.72	28.8	6.32	2.05	1.47	2.28	1.07
70 x 50	6	5.41	7.0	3.5	6.89	2.23	1.25	33.4	14.2	-12.6	39.7	7.92	2.2	1.43	2.4	1.07
75 x 50	6	5.65	7.0	3.5	7.19	2.44	1.21	40.5	14.4	-14	46.6	8.36	2.37	1.42	2.55	1.08
75 x 50	8	7.39	7.0	3.5	9.41	2.52	1.29	52	18.4	-17.7	59.6	10.8	2.35	1.4	2.52	1.07
80 x 40	6	5.41	7.0	3.5	6.89	2.85	0.88	44.9	7.59	-10.3	47.6	4.93	2.55	1.05	2.63	0.845
80 x 40	8	7.07	7.0	3.5	9.01	2.94	0.96	57.6	9.61	-13	60.9	6.34	2.53	1.03	2.6	0.838
80 x 60	7	7.36	8.0	4.0	9.38	2.51	1.52	59	28.4	-23.8	72	15.4	2.51	1.74	2.77	1.28
100 x 50	6	6.84	8.0	4.0	8.71	3.51	1.05	89.9	15.4	-20.9	95.4	9.92	3.21	1.33	3.31	1.07
100 x 50	8	8.97	8.0	4.0	11.4	3.60	1.13	116	19.7	-26.7	123	12.8	3.19	1.31	3.28	1.06
100 x 65	7	8.77	10.0	5.0	11.2	3.23	1.51	113	37.6	-37.5	128	22	3.17	1.83	3.39	1.4
	8	9.94	10.0	5.0	12.7	3.27	1.55	127	42.2	-42.2	144	24.8	3.16	1.83	3.37	1.4
	9	11.1	10.0	5.0	14.1	3.22	1.59	141	46.7	-46.8	166	27.37	3.15	1.82	3.36	1.39
	10	12.3	10.0	5.0	15.6	3.36	1.63	154	51	-50.8	175	30.2	3.14	1.81	3.35	1.39
	12	14.5	10.0	5.0	18.5	3.44	1.71	179	59.1	-58.7	203	35.2	3.12	1.79	3.23	1.38
100 x 75	8	10.6	10.0	5.0	13.5	3.10	1.87	133	64.1	-53.8	162	34.6	3.14	2.18	3.47	1.6
	10	13	10.0	5.0	16.6	3.19	1.95	162	77.6	-65.1	197	42.2	3.12	2.16	3.45	1.59
	12	15.4	10.0	5.0	19.7	3.27	2.03	189	90.2	-75.3	230	49.5	3.1	2.14	3.42	1.59
120 x 80	8	12.2	11.0	5.5	15.5	3.83	1.87	226	80.8	-78.2	260	46.6	3.82	2.28	4.1	1.74
	10	15	11.0	5.5	19.1	3.92	1.95	276	98.1	-95	317	56.8	3.8	2.26	4.07	1.72
	12	17.8	11.0	5.5	22.7	4.00	2.03	323	114	-111	370	66.7	3.77	2.24	4.04	1.71
125 x 75	8	12.2	11.0	5.5	15.5	4.14	1.68	247	67.6	-74.2	274	40.9	4	2.09	4.21	1.63
	9	13.6	11.0	5.5	17.3	4.18	1.72	275	75	-82.7	305	45.2	3.98	2.08	4.19	1.62
	10	15	11.0	5.5	19.1	4.23	1.76	302	82.1	-90.1	334	49.9	3.97	2.07	4.18	1.61
	12	17.8	11.0	5.5	22.7	4.31	1.84	354	95.5	-105	391	58.5	3.95	2.05	4.15	1.61
130 x 90	10	16.6	11.0	5.0	21.2	4.26	2.19	360	142	-131.6	422	79.9	4.12	2.59	4.46	1.94
130 x 90	12	19.7	12.0	6.0	25.1	4.24	2.26	420	165	-152.6	492	93.3	4.09	2.56	4.42	1.93
135 x 65	8	12.2	11.0	5.5	15.5	4.78	1.34	291	45.2	-64.1	307	29.4	4.34	1.71	4.45	1.38
135 x 65	10	15	11.0	5.5	19.1	4.88	1.42	356	54.7	-77.6	375	35.9	4.31	1.69	4.43	1.37
150 x 75	9	15.4	12.0	6.0	19.6	5.26	1.57	455	77.9	-106	483	50.2	4.82	1.99	4.96	1.6
	10	17	11.0	5.5	21.6	5.32	1.61	501	85.8	-117	532	55.3	4.81	1.99	4.96	1.6
	12	20.2	11.0	5.5	25.7	5.41	1.69	589	99.9	-136	624	64.9	4.79	1.97	4.93	1.59
	15	24.8	11.0	5.5	31.6	5.53	1.81	713	120	-161	754	78.8	4.75	1.94	4.88	1.58
150 x 90	10	18.2	12.0	6.0	23.2	5.00	2.04	533	146	-160	591	88.3	4.8	2.51	5.05	1.95
	12	21.6	12.0	6.0	27.5	5.08	2.12	627	171	-188	694	104	4.77	2.49	5.02	1.94
	15	26.6	12.0	6.0	33.9	5.21	2.23	761	205	-225	841	126	4.74	2.46	4.98	1.93
150 x 100	10	19	12.0	6.0	24.2	4.81	2.34	553	198	-192	637	114	4.78	2.87	5.13	2.17
150 x 100	12	22.5	12.0	6.0	28.7	4.90	2.42	651	233	-225	749	134	4.76	2.85	5.11	2.16
200 x 100	10	23	15.0	7.5	29.2	6.93	2.01	1219	210	-285	1294	135	6.46	2.68	6.65	2.15
	12	27.3	15.0	7.5	34.8	7.03	2.10	1440	247	-336	1528	159	6.43	2.67	6.63	2.14
	15	33.7	15.0	7.5	43.0	7.16	2.22	1758	299	-406	1864	194	6.4	2.64	6.58	2.12

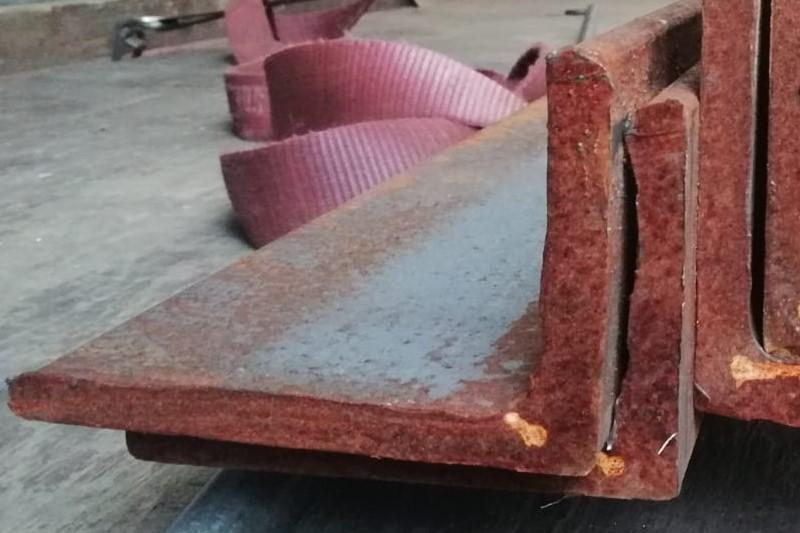

Unequal sides angle

THE USE OF UNEQUAL SIDES ANGLE:

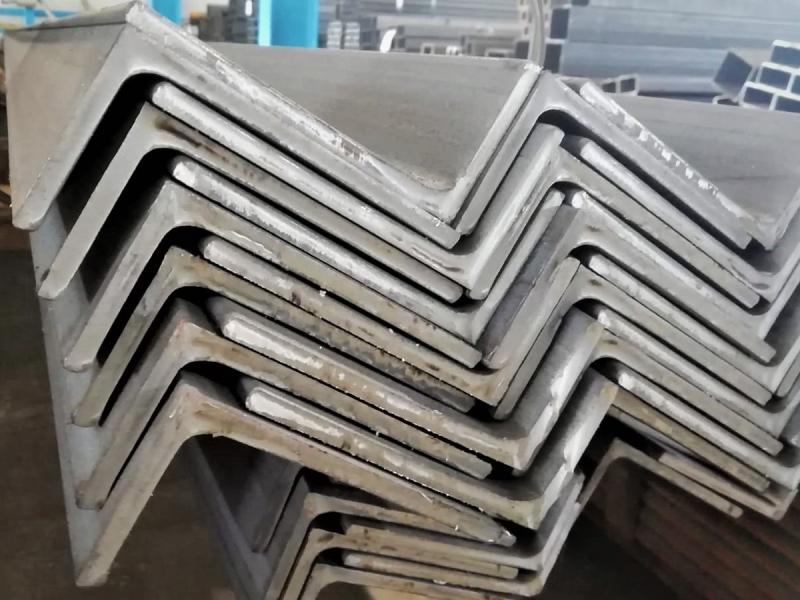

The unequal sides angle is a cross section made of carbon steel, in the form of a right angle with various sizes. It is also known as the unequal wing angle, unequal steel angle, L shaped profile.

The advantages of this product include dimensional accuracy, uniform chemical composition and stable mechanical properties. It can also be used as a joint between other elements by welding or riveting.

For an angle with unequal sides, the width of the sides varies between 20 and 100 mm for the short side and 30 - 200 mm for the longer side; the thickness of the sides varies between 3 and 15 mm.

Applications:

- various metal parts;

- structural elements;

- vehicle and trailer bodies;

- commercial or residential buildings;

- steel towers;

- pillars;

- bridges:

- rail cars;

- ship construction;

- industrial machinery;

- gates and fences;

- storage shelves and containers.

TECHNICAL SPECIFICATIONS:
Manufacturing dimensions: according to DIN 1029 / EN 10056-1
Material quality: according to DIN 17100 / EN 10025
Manufacturing tolerances: according to EN 10056-2
Corner quality certificate with unequal sides: according to EN 10204 - type 2.2 or 3.1B
Surface appearance: according to EN 10163-3
