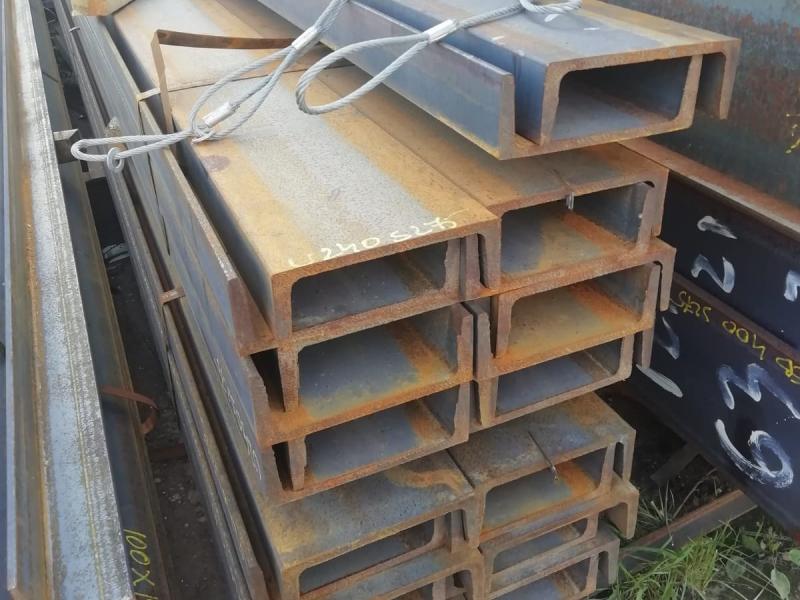

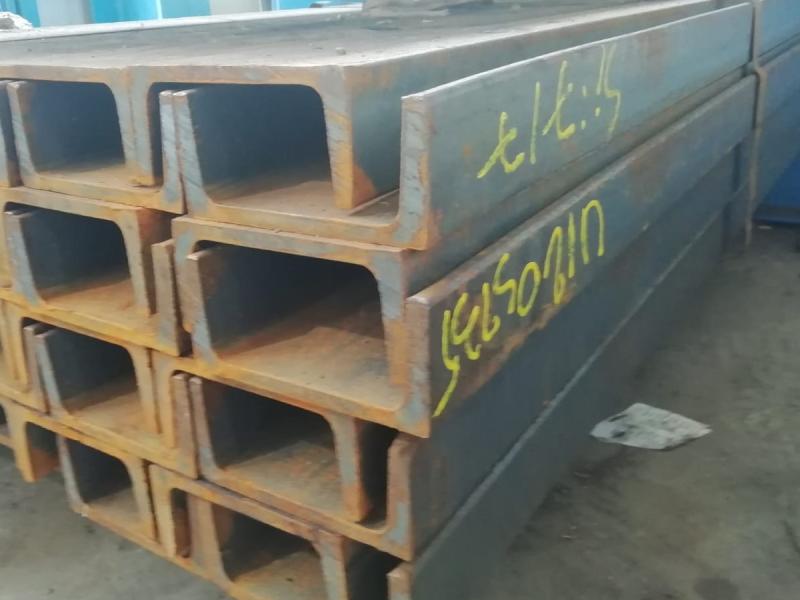

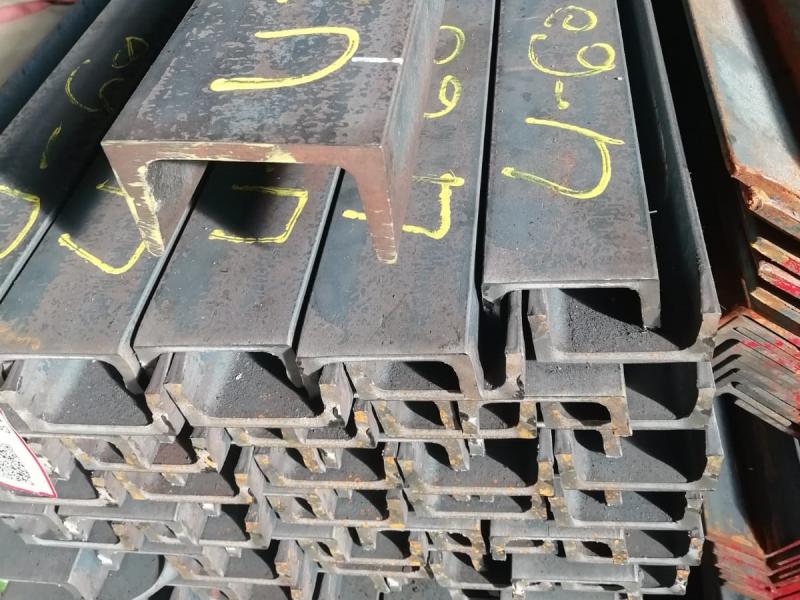

UNP channel
UNP channel from H Metal is available in a complete range of dimensions and steel grades to meet your project specifications.
Manufactured to EN 10279 standard, suitable for frames, supports and construction structures.
Working with H Metal gives you access to cutting, drilling and processing services on request. Nationwide delivery.
ConfiguratorDimensions and specifications
|
Denumire |
Greutate |
Dimensiuni (mm) |
Sectiune |
Modulul sectiunii |
||||||
|
kg / ml |
cm² |
cm³ |
||||||||
|
Teoretica |
Comerciala |

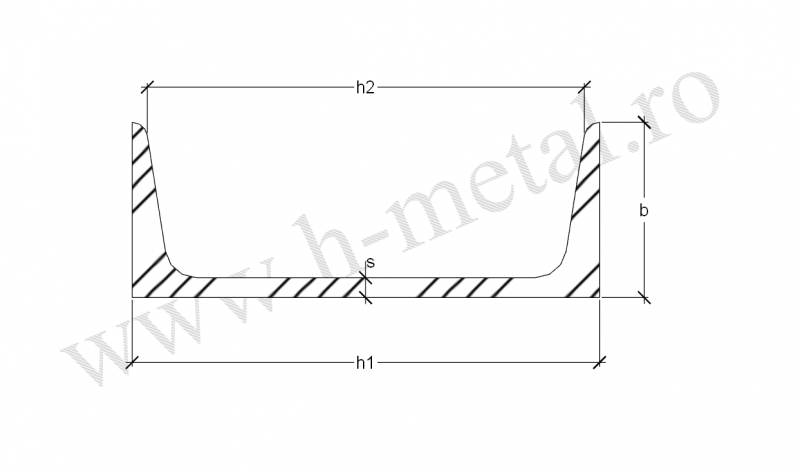

h1 |
b |
s |
t |
h2 |
F |
Wx |
Wy |
|
|
UNP 30 |
4,27 |
30 |
33 |
5,0 |
7,0 |
- | 5,4 |
- |
- | |
UNP 40x20 |
2,86 |
40 |
20 |
5,0 |
5,5 |
- |
3,7 |
- |
- |
|
UNP 40 |
4,87 |
40 |
35 |
5,0 |
3,5 |
- |
6,2 |
- |
- |
|
UNP 50x25 |
3,86 |
50 |
25 |
5,0 |
6,0 |
25 |
4,92 |
6,70 |
1,48 |
|
UNP 50x38 |
5,59 |
50 |
38 |
5,0 |
7,0 |
21 |
7,12 |
10,60 |
3,75 |
|
UNP 60x30 |
5,07 |
60 |
30 |
6,0 |
6,0 |
35 |
6,46 |
10,50 |
2,16 |
|
|

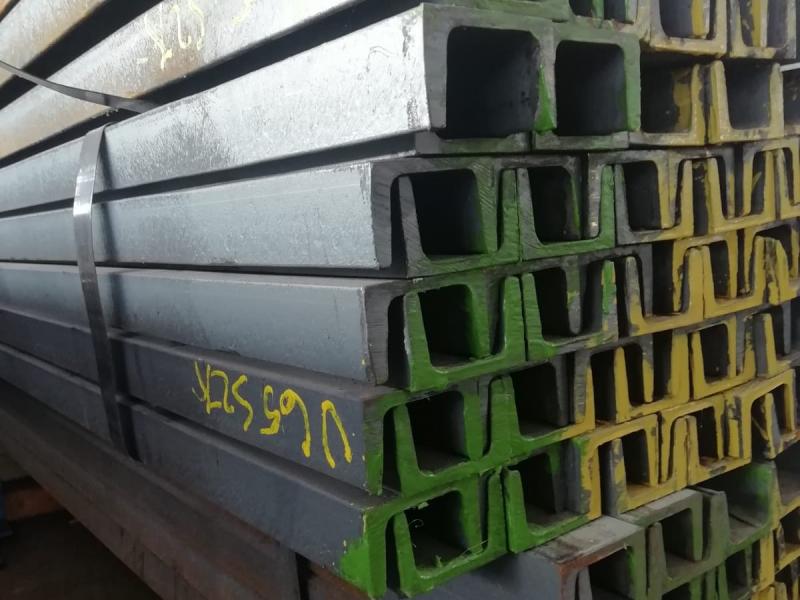

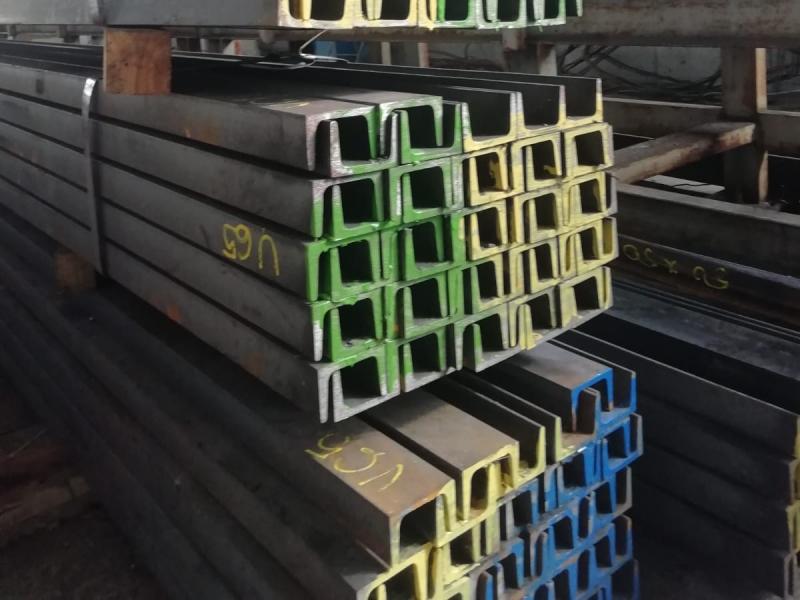

UNP 65 |
7,09 |
7,09 |
65 |
42 |
5,5 |
7,5 |
34 |
9,03 |
17,70 |
5,07 |
|
UNP 80 |
8,64 |
8,90 |
80 |
45 |
6,0 |
8,0 |
47 |
11,00 |
26,50 |
6,36 |
|
UNP 100 |
10,6 |
10,90 |
100 |
50 |
6,0 |
8,5 |
64 |
13,50 |
41,20 |
8,49 |
|
UNP 120 |
13,4 |
13,70 |
120 |
55 |
7,0 |
9,0 |
82 |
17,00 |
60,70 |
11,10 |
|
UNP 140 |
16,0 |
16,40 |
140 |
60 |
7,0 |
10,0 |
98 |
20,40 |
86,40 |
14,80 |
|
UNP 160 |
18,8 |
19,30 |
160 |
65 |
7,5 |
10,5 |
115 |
24,00 |
116,00 |
18,30 |
|
UNP 180 |
22,0 |
22,50 |
180 |
70 |
8,0 |
11,0 |
133 |
28,00 |
150,00 |
22,40 |
|
UNP 200 |
25,3 |
26,00 |
200 |
75 |
8,5 |
11,5 |
151 |
32,20 |
191,00 |
27,00 |
|
UNP 220 |
29,4 |
30,00 |
220 |
80 |
9,0 |
12,5 |
167 |
37,40 |
245,00 |
33,60 |
|
UNP 240 |
33,2 |
34,00 |
240 |
85 |
9,5 |
13,0 |
184 |
42,30 |
300,00 |
39,60 |
|
UNP 260 |
37,9 |
39,00 |
260 |
90 |
10,0 |
14,0 |
200 |
48,30 |
371,00 |
47,70 |
|
UNP 280 |
41,8 |
43,00 |
280 |
95 |
10,0 |
15,0 |
216 |
53,30 |
448,00 |
57,20 |
|
UNP 300 |
46,2 |
48,00 |
300 |
100 |
10,0 |
16,0 |
232 |
58,80 |
535,00 |
67,80 |
|
UNP 320 |
59,5 |
61,00 |
320 |
100 |
14,0 |
17,5 |
246 |
75,80 |
649,00 |
80,60 |
|
UNP 350 |
60,6 |
62,00 |
350 |
100 |
14,0 |
16,0 |
282 |
77,30 |
734,00 |
75,00 |
|
UNP 380 |
63,1 |
65,00 |
380 |
102 |
13,34 |
16,0 |
313 |
80,40 |
826,00 |
78,40 |
|
UNP 400 |
71,8 |
74,00 |
400 |
110 |
14,0 |
18,0 |
324 |
91,50 |
1020,00 |
102,00 |
Detalii tehnice Profil UNP
Utilizare profil UNP:
In Romania pentru profilul U cu margini inclinate se utilizeaza notarea UNP, echivalenta cu simbolizarea europeana UPN. De asemenea, in Europa, mai este utilizat si profilul U cu margini paralele UAP.
UNP-ul din otel poate fi utilizat la constructia de parcari, depozite si stadioane sportive. Profilul U laminat la cald este realizat din otel si are aplicatii in domeniul constructiilor si al utiliajelor. Este de obicei folosit pentru structuri arhitecturale, poate fi sudat sau imbinat prin alte procedee.
Pentru grinzi de bordaj sau de planseu se folosesc si profile UNP, cate unul sau cate doua cuplate, eventual ranforsate cu profil HEA
Daca se doreste debitarea profilelor UNP, la o anumita dimensiune, acestea trebuie taiate fara indoirea capetelor si fara a se deforma vizibil sectiunea. Bavurile rezultate din taiere nu trebuie sa depaseasca 8 mm.
Caracteristici tehnice:
Tolerante de fabricatie conform:
EN 10279 Standardul reglementeaza conditiile referitoare la tolerantele la dimensiuni, forma si masa a profilelor U laminate la cald din otel.
Calitate otel: S 235, S 275, S 355 conform EN 10025 - 2
Lungimi de fabricatie: 6 si 12ml
