Fekete lemez

Name: Fekete lemez
Brand: H Metal

A H Metal Fekete lemez teljes meretkinalatban es acelminosegben elerheto a projekt kovetelményeinek megfeleloen.

Az EN 10025 szabvany szerint gyartva, szerkezeti es ipari alkalmazasokhoz egyarant alkalmas.

A H Metal keresre vagasi, furasi es feldolgozasi szolgaltatasokat nyujt. Orszagos szallitas.

Configurator

Méretek és jellemzők

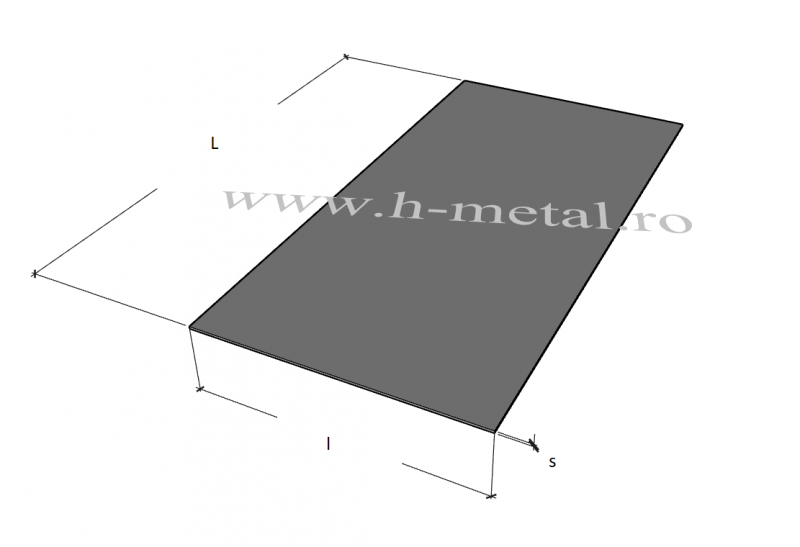

Grosime	Greutate	Dimensiuni I x L
Grosime	Greutate	Greutate Kg/foaie
(s) mm	Kg/mp	1000 x 2000	1250 x 2500	1500 x 3000	1500 x 6000	2000 x 6000	2500 x 6000	2000 x 8000	2000 x 12000	2500 x 8000
1.50	12.00	24.00	37.50	54.00	-	-	-	-	-	-
2.00	16.00	32.00	50.00	72.00	144.00	-	-	-	-	-
2.50	20.00	40.00	62.50	90.00	180.00	-	-	-	-	-
3.00	24.00	48.00	75.00	108.00	216.00	288.00	-	-	-	-
4.00	32.00	64.00	100.00	144.00	288.00	384.00	-	-	-	-
5.00	40.00	80.00	125.00	180.00	360.00	480.00	600.00	640.00	960.00	800.00
6.00	48.00	96.00	150.00	216.00	432.00	576.00	720.00	768.00	1152.00	960.00
7.00	56.00	112.00	175.00	252.00	504.00	672.00	840.00	896.00	1344.00	1120.00
8.00	64.00	128.00	200.00	288.00	576.00	768.00	960.00	1024.00	1536.00	1280.00
9.00	72.00	144.00	225.00	324.00	648.00	864.00	1080.00	1152.00	1728.00	1440.00
10.00	80.00	160.00	250.00	360.00	720.00	960.00	1200.00	1280.00	1920.00	1600.00
12.00	96.00	192.00	300.00	432.00	864.00	1152.00	1440.00	1536.00	2304.00	1920.00
14.00	112.00	-	-	-	1008.00	1344.00	1680.00	1792.00	2688.00	2240.00
15.00	120.00	-	-	-	1080.00	1440.00	1800.00	1920.00	2880.00	2400.00
16.00	128.00	-	-	-	1152.00	1536.00	1920.00	2048.00	3072.00	2560.00
18.00	144.00	-	-	-	1296.00	1728.00	2160.00	2304.00	3456.00	2880.00
20.00	160.00	-	-	-	1440.00	1920.00	2400.00	2560.00	3840.00	3200.00
22.00	176.00	-	-	-	1584.00	2112.00	2640.00	2816.00	4224.00	3520.00
25.00	200.00	-	-	-	1800.00	2400.00	3000.00	3200.00	4800.00	4000.00
28.00	224.00	-	-	-	-	2688.00	3360.00	3584.00	5376.00	4480.00
30.00	240.00	-	-	-	-	2880.00	3600.00	3840.00	5760.00	4800.00
35.00	280.00	-	-	-	-	3360.00	4200.00	4480.00	6720.00	5600.00
40.00	320.00	-	-	-	-	3840.00	4800.00	5120.00	7680.00	6400.00
45.00	360.00	-	-	-	-	4320.00	5400.00	5760.00	8640.00	7200.00
50.00	400.00	-	-	-	-	4800.00	6000.00	6400.00	9600.00	8000.00
60.00	480.00	-	-	-	-	5760.00	7200.00	7680.00	11520.00	9600.00
70.00	560.00	-	-	-	-	6720.00	8400.00	8960.00	13440.00	11200.00
80.00	640.00	-	-	-	-	7680.00	9600.00	10240.00	15360.00	12800.00
90.00	720.00	-	-	-	-	8640.00	10800.00	11520.00	17280.00	14400.00
100.00	800.00	-	-	-	-	9600.00	12000.00	12800.00	19200.00	16000.00

Detalii tehnice Tabla neagra

Utilizari tabla neagra otel:

- accesorii linii de cale ferata;

- compartimente depozitare - piese auto;

- diverse aplicatii structurale;

- industria navala;

- constructia de cazane si alti recipienti sub presiune;

- fabricarea de masini si echipamente grele;

- productia de containere.

Atunci cand alegeti materialele pentru o anumita aplicatie, este important sa cunoasteti diferenta intre diferitele tipuri de otel disponibile, tipul de laminare si avantajele includerii lor in proiectul dumneavoastra industrial sau de constructii.

Tabla neagra laminata la cald este realizata din otel incalzit peste temperatura de recristalizare. Procedeul continua prin rularea si presarea succesiva prin role pana se obtine grosimea dorita. Astfel rezulta un material rezultat flexibil, fara a deveni casant.

Acest tip de tabla este ideala pentru aplicatiile unde grosimea, puterea si capacitate de formare sunt importante.
