Are you looking for a metallurgical product to create both light and durable structures?
The accuracy of the cross-section shape and formability make the equal sides angle a suitable product for the construction of any steel structure, whether for commercial or residential buildings, machinery or devices.
We deliver quickly steel equal sides angles according to the European standards.
|

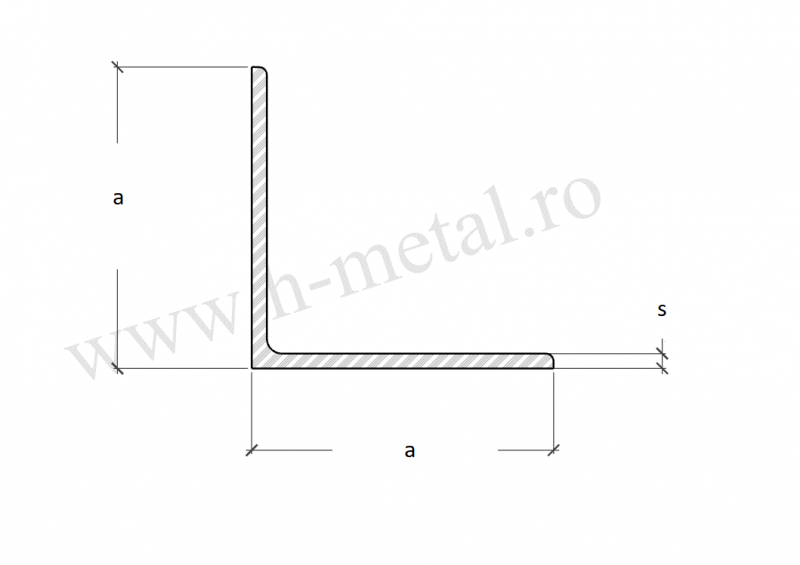

Width sides (a x a) |
Thickness (s) |
Weight / ml |
Radius r1 |
Radius r2 |
Section aria |
Section module |
Axis |
Moment of inertia |
Radius of rotation |
||||
|
Cx = Cy |
x-x = y-y |
u-u |
v-v |
x-x = y-y |
u-u |
v-v |
|||||||
|
mm |
mm |
kg |
mm |
mm |
cm2 |
cm3 |
cm |
cm4 |
cm4 |
cm4 |
cm |
cm |
cm |
|
20 x 20 |
3 |
0.88 |
3.5 |
2.0 |
1.12 |
0.28 |
0.60 |
0.39 |
0.61 |
0.16 |
0.59 |
0.74 |
0.38 |
|
25 x 25 |
3 |
1.11 |
3.5 |
2.0 |
1.42 |
0.45 |
0.72 |
0.80 |
1.26 |
0.33 |
0.75 |
0.94 |
0.48 |
|
4 |
1.45 |
3.5 |
2.0 |
1.85 |
0.58 |
0.76 |
1.01 |
1.60 |
0.43 |
0.74 |
0.93 |
0.48 |
|
|
5 |
1.77 |
3.5 |
2.0 |
2.26 |
0.71 |
0.80 |
1.20 |
1.87 |
0.52 |
0.73 |
0.91 |
0.48 |
|
|
30 x 30 |
3 |
1.36 |
5.0 |
2.5 |
1.74 |
0.65 |
0.84 |
1.40 |
2.23 |
0.58 |
0.90 |
1.13 |
`0.58 |
|
4 |
1.78 |
5.0 |
2.5 |
2.27 |
0.85 |
0.88 |
1.80 |
2.85 |
0.75 |
0.89 |
1.12 |
0.58 |
|
|
5 |
2.18 |
5.0 |
2.5 |
2.78 |
1.04 |
0.92 |
2.16 |
3.41 |
0.92 |
0.88 |
1.11 |
0.57 |
|
|
35 x 35 |
4 |
2.09 |
5.0 |
2.5 |
2.67 |
1.18 |
1.00 |
2.95 |
4.69 |
1.22 |
1.05 |
1.33 |
0.68 |
|
40 x 40 |
4 |
2.42 |
6.0 |
3.0 |
3.08 |
1.55 |
1.12 |
4.47 |
7.09 |
1.85 |
1.21 |
1.52 |
0.78 |
|
5 |
2.97 |
6.0 |
3.0 |
3.79 |
1.91 |
1.16 |
5.43 |
8.60 |
2.26 |
1.20 |
1.51 |
0.77 |
|
|
6 |
3.52 |
6.0 |
3.0 |
4.48 |
2.26 |
1.20 |
6.31 |
9.98 |
2.65 |
1.19 |
1.49 |
0.77 |
|
|
45 x 45 |
4 |
2.74 |
7.0 |
3.5 |
3.49 |
1.97 |
1.23 |
6.43 |
10.20 |
2.67 |
1.36 |
1.71 |
0.87 |
|
5 |
3.38 |
7.0 |
3.5 |
4.30 |
2.43 |
1.28 |
7.84 |
12.40 |
3.25 |
1.35 |
1.70 |
0.87 |
|
|
6 |
4.00 |
7.0 |
3.5 |
5.09 |
2.88 |
1.32 |
9.16 |
14.50 |
3.82 |
1.34 |
1.69 |
0.87 |
|
|
50 x 50 |
5 |
3.77 |
7.0 |
3.5 |
4.80 |
3.05 |
1.40 |
11.00 |
17.40 |
4.54 |
1.51 |
1.90 |
0.97 |
|
6 |
4.47 |
7.0 |
3.5 |
5.69 |
3.61 |
1.45 |
12.80 |
20.40 |
5.33 |
1.50 |
1.89 |
0.97 |
|
|
7 |
5.82 |
7.0 |
3.5 |
7.41 |
4.68 |
1.52 |
16.30 |
25.70 |
6.87 |
1.48 |
1.86 |
0.96 |
|
|
55 x 55 |
5 |
4.18 |
8.0 |
4.0 |
5.32 |
3.70 |
1.52 |
14.71 |
23.37 |
6.06 |
1.66 |
2.10 |
1.07 |
|
6 |
4.95 |
8.0 |
4.0 |
6.31 |
4.39 |
1.56 |
17.29 |
27.44 |
7.13 |
1.66 |
2.09 |
1.06 |
|
|
60 x 60 |
5 |
4.57 |
8.0 |
4.0 |
5.82 |
4.45 |
1.64 |
19.40 |
30.70 |
8.02 |
1.82 |
2.30 |
1.17 |
|
6 |
5.42 |
8.0 |
4.0 |
6.91 |
5.29 |
1.69 |
22.80 |
36.20 |
9.43 |
1.82 |
2.29 |
1.17 |
|
|
8 |
7.09 |
8.0 |
4.0 |
9.03 |
6..89 |
1.77 |
29.20 |
46.20 |
12.10 |
1.80 |
2.26 |
1.16 |
|
|
10 |
8.69 |
8.0 |
4.0 |
11.10 |
8.41 |
1.85 |
34.90 |
55.10 |
14.80 |
1.78 |
2.23 |
1.16 |
|
|
70 x 70 |
6 |
6.38 |
9.0 |
4.5 |
8.13 |
7.27 |
1.93 |
36.90 |
58.50 |
15.20 |
2.13 |
2.68 |
1.37 |
|
8 |
8.36 |
9.0 |
4.5 |
10.60 |
9.52 |
2.01 |
47.50 |
75.30 |
19.70 |
2.11 |
2.66 |
1.36 |
|
|
10 |
10.30 |
9.0 |
4.5 |
13.10 |
11.70 |
2.09 |
57.20 |
90.50 |
23.90 |
2.09 |
2.63 |
1.35 |
|
|
80 x 80 |
6 |
7.34 |
10.0 |
5.0 |
9.35 |
9.57 |
2.17 |
55.80 |
88.50 |
23.10 |
2.44 |
3.08 |
1.57 |
|
8 |
9.63 |
10.0 |
5.0 |
12.30 |
12.60 |
2.26 |
72.20 |
115.00 |
29.80 |
2.43 |
3.06 |
1.56 |
|
|
10 |
11.90 |
10.0 |
5.0 |
15.10 |
15.40 |
2.34 |
87.50 |
139.00 |
36.30 |
2.41 |
3.03 |
1.55 |
|
|
90 x 90 |
6 |
8.30 |
11.0 |
5.5 |
10.60 |
12.20 |
2.41 |
80.30 |
127.00 |
33.30 |
2.76 |
3.47 |
1.78 |
|
8 |
10.90 |
11.0 |
5.5 |
13.90 |
16.10 |
2.50 |
104.00 |
166.00 |
43.10 |
2.74 |
3.45 |
1.76 |
|
|
10 |
13.40 |
11.0 |
5.5 |
17.10 |
19.80 |
2.58 |
127.00 |
201.00 |
52.60 |
2.72 |
3.42 |
1.76 |
|
|
12 |
15.90 |
11.0 |
5.5 |
20.30 |
23.30 |
2.66 |
148.00 |
234.00 |
61.70 |
2.70 |
3.40 |
1.75 |
|
|
100x100 |
8 |
12.20 |
12.0 |
6.0 |
15.50 |
19.90 |
2.74 |
145.00 |
230.00 |
59.80 |
3.06 |
3.85 |
1.96 |
|
12 |
17.80 |
12.0 |
6.0 |
22.70 |
29.10 |
2.90 |
207.00 |
328.00 |
85.70 |
3.02 |
3.80 |
1.94 |
|
|
15 |
21.90 |
12.0 |
6.0 |
27.90 |
35.60 |
3.02 |
249.00 |
393.00 |
104.00 |
2.98 |
3.75 |
1.93 |
|
|
120x120 |
8 |
14.70 |
13.0 |
6.5 |
18.70 |
29.10 |
3.23 |
255.00 |
405.00 |
105.00 |
3.69 |
4.65 |
2.37 |
|
10 |
18.20 |
13.0 |
6.5 |
23.20 |
36.00 |
3.31 |
313.00 |
497.00 |
129.00 |
3.67 |
4.63 |
2.36 |
|
|
12 |
21.60 |
13.0 |
6.5 |
27.50 |
42.70 |
3.40 |
368.00 |
584.00 |
151.00 |
3.65 |
4.60 |
2.35 |
|
|
15 |
26.60 |
13.0 |
6.5 |
33.90 |
52.40 |
3.51 |
445.00 |
705.00 |
185.00 |
3.62 |
4.56 |
2.33 |
|
|
150x150 |
10 |
23.00 |
16.0 |
8.0 |
29.30 |
56.90 |
4.03 |
624.00 |
991.00 |
258.00 |
4.62 |
5.82 |
2.97 |
|
12 |
27.30 |
16.0 |
8.0 |
34.80 |
67.70 |
4.12 |
737.00 |
1170.00 |
303.00 |
4.60 |
5.80 |
2.95 |
|
|
15 |
33.80 |
16.0 |
8.0 |
43.00 |
83.50 |
4.25 |
898.00 |
1430.00 |
370.00 |
4.57 |
5.76 |
2.93 |
|
|
18 |
40.10 |
16.0 |
8.0 |
51.00 |
98.70 |
4.37 |
1050.00 |
1670.00 |
435.00 |
4.54 |
5.71 |
2.92 |
|
|
200x200 |
16 |
48.50 |
18.0 |
9.0 |
61.80 |
162.00 |
5.52 |
2340.00 |
3720.00 |
959.00 |
6.16 |
7.76 |
3.94 |
|
18 |
54.20 |
18.0 |
9.0 |
69.10 |
181.00 |
5.60 |
2600.00 |
4130.00 |
1070.00 |
6.13 |
7.73 |
3.93 |
|
|
20 |
59.90 |
18.0 |
9.0 |
76.30 |
199.00 |
5.68 |
2850.00 |
4530.00 |
1170.00 |
6.11 |
7.70 |
3.92 |
|
|
24 |
71.10 |
18.0 |
9.0 |
90.60 |
235.00 |
5.84 |
3330.00 |
5280.00 |
1380.00 |
6.06 |
7.64 |
3.90 |
|

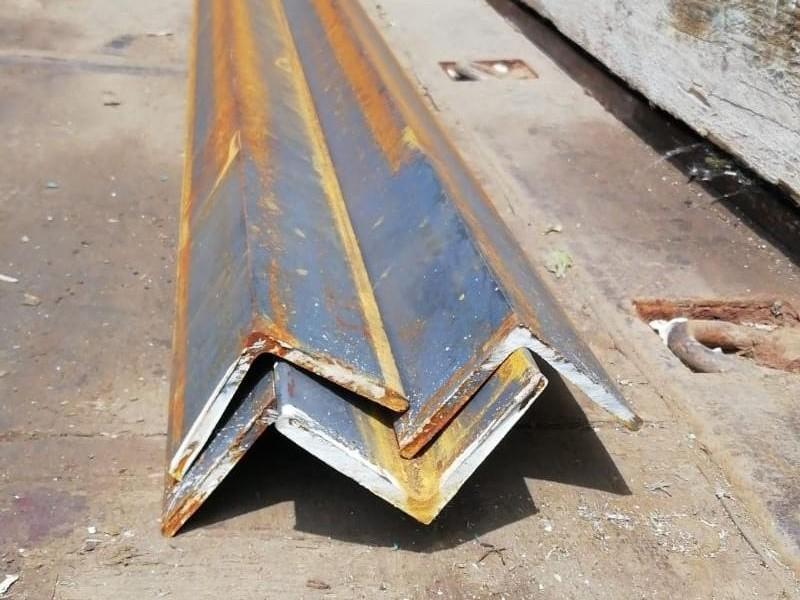

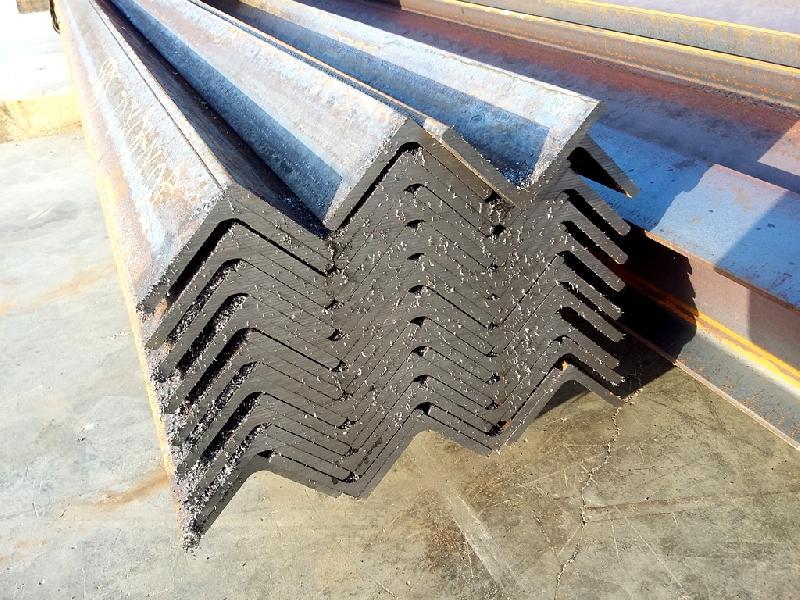

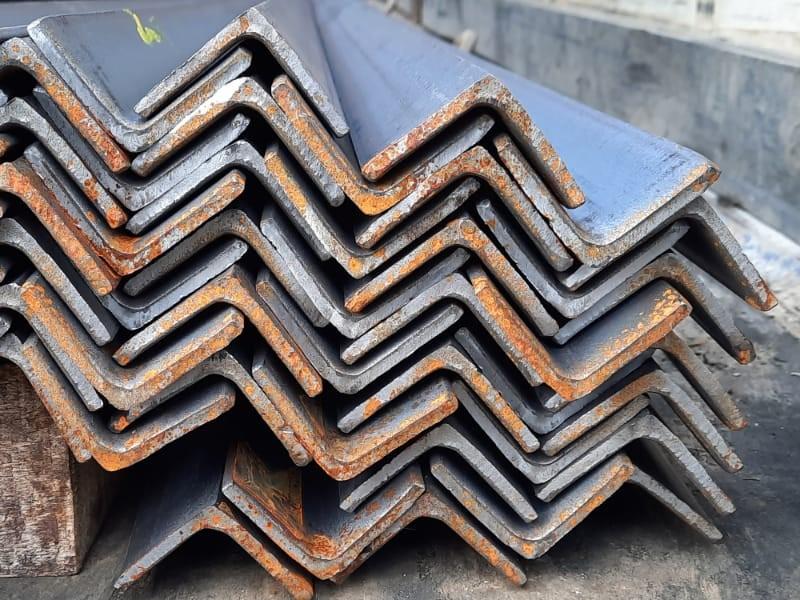

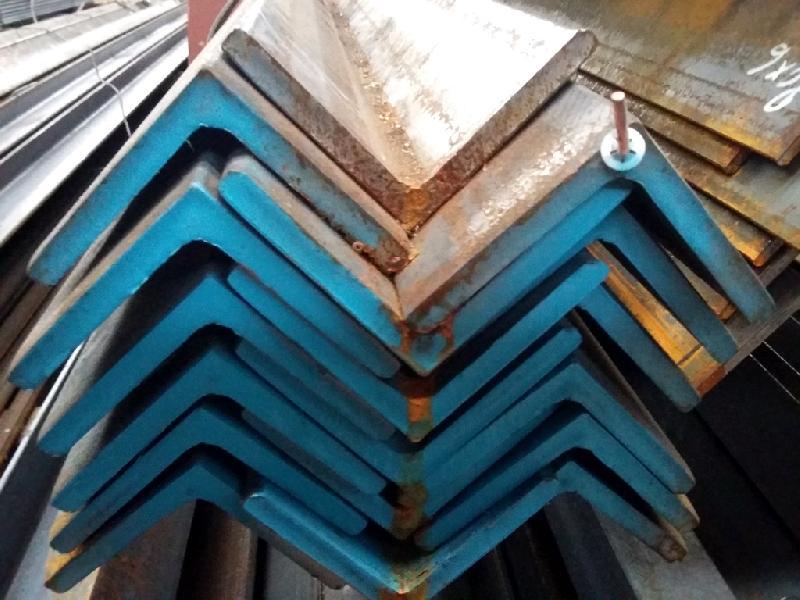

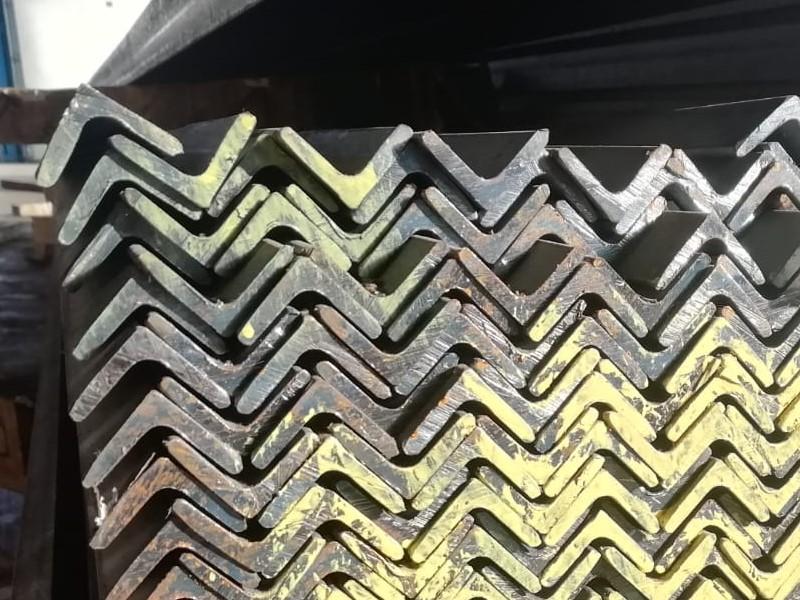

Properties of an equal sides angle
Equal sides angle - is a cross section made of carbon steel, in the form of a right angle with both sides equal. It is also known as profile L, angle joint, angle extension.
It has good mechanical strength, it can be used riveted or welded and it can also be used as a joint between other elements.
The L profile is manufactured by hot rolling process, having right/sharp angle/corner. It is possible to make metallic and sheet metal angle by stamping. This process involves bending the sheet metal on an industrial press brake.
The equal sides angle is manufactured in various thicknesses of the sides, between 3 and 24 mm, the width of the sides at the angle having manufacturing sizes between 20 and 200 mm.
Applications of the equal sides angle:
- various metal parts and frames;
- metal stands, metal frames and chassis;
- parts and elements for equipment;
- gates and fences;
- transmission towers;
- lifting and transport equipment;
- industrial ovens;
- storage shelves and containers;
- power line pillars.
TECHNICAL SPECIFICATIONS:
Manufacturing dimensions according to EN 10056-1
Manufacturing tolerances according to EN 10056-2
Surface appearance according to EN 10163-3
Quality certificate according to EN 10204 - type 2.2 or 3.1B
